HTTP to HTTPS redirection

After an SSL certificate is installed, a secure connection (https://) is not forced by default, and a website remains accessible via regular insecure http:// bypassing SSL/TLS protocols. It means that a website visitor may send sensitive data over an unencrypted channel unless he/she explicitly specifies https:// as a protocol he/she would like to use for connection.

Thanks to HTTP to HTTPS redirection, a visitor requesting to initiate an unencrypted (http://) session will be automatically redirected to an encrypted one (https://) secured by SSL/TLS protocol.

  1. Install the 'URL Rewrite' module
  2. Re-open (if opened) 'IIS Manager' and select the website you would like to apply the redirection to in the left-side menu.

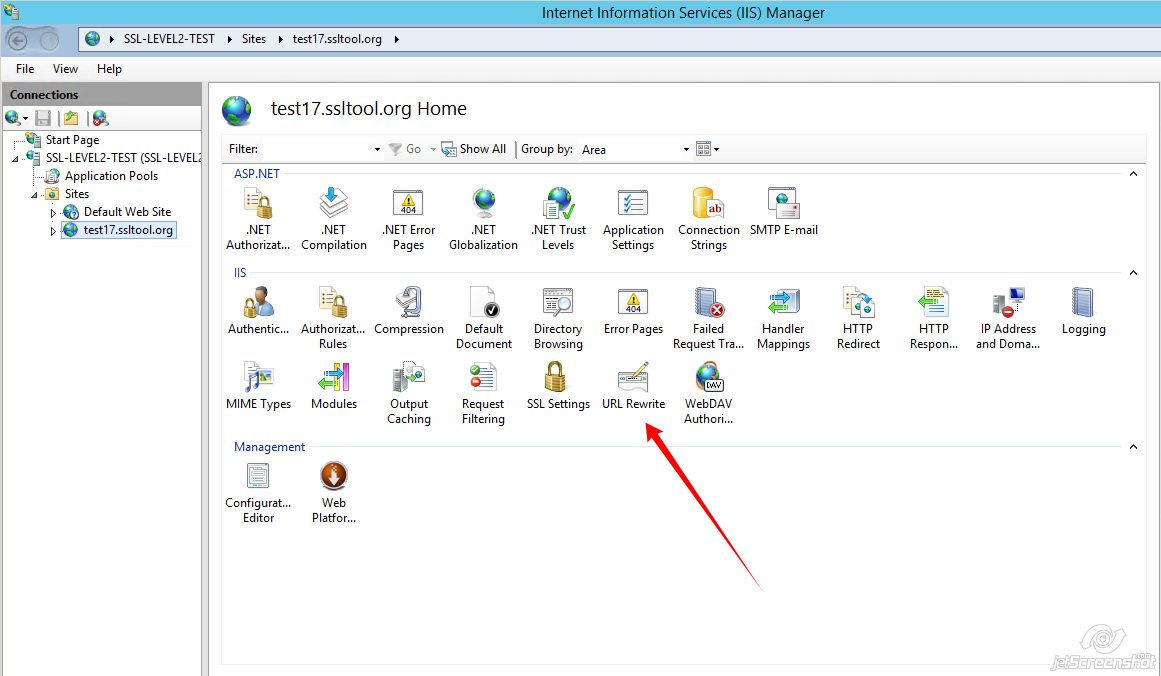

  3. Double-click on the 'URL Rewrite' icon


  4. Click 'Add Rule' on the right-side menu
  5. Select 'Blank Rule' > 'OK'

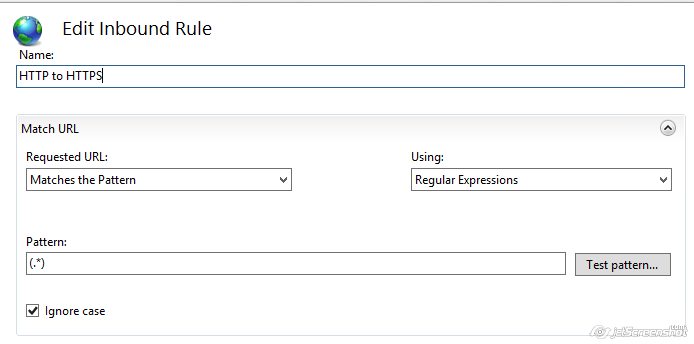

  6. Enter the rule name of your choice
  7. In the 'Match URL' section:
    • select 'Matches the Pattern' in the 'Requested URL' drop-down menu;
    • select 'Regular Expressions' in the 'Using' drop-down menu;
    • enter the following pattern in the 'Match URL' section: '(.*)' ;
    • check the box 'Ignore case'

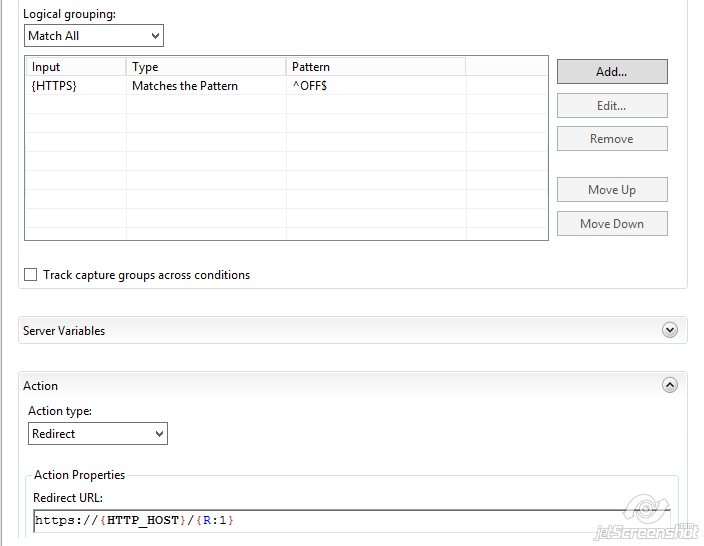

  8. In the 'Conditions' section select 'Match all' in the 'Logical Grouping' drop-down menu and click 'Add'

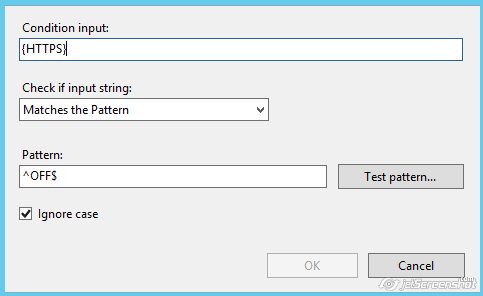

  9. In the prompted window:
    • enter '{HTTPS}' as a condition input
    • select 'Matches the Pattern' from the drop-down menu
    • enter '^OFF$' as a pattern
    • Click 'OK'


  10. In the 'Action' section select 'Redirect' as an action type and specify the following for 'Redirect URL':

    https://{HTTP_HOST}/{R:1}


  11. Check the box 'Append query string'.
  12. Select a Redirection Type of your choice
  13. Click on 'Apply' on the right side of the 'Actions' Menu.
